Mini-Power Station

Product features

• USB Open : 4 USB plug-in detection function, plug-in device, will automatically start the USB output; short press the DC button can also turn on the USB output function, display screen USB, DC icon lit up.

• USB Close : Short Press DC button can turn off USB output, USB, DC icon off. If the USB port is still loaded, it will automatically restart the USB, you need to unplug the load and then turn off the USB.

• AC On/off : Long Press AC button, AC Open, AC icon light up. Press the AC key again, the AC switch off the output, the AC icon goes out.

• LED Lighting, on/off : Long press the DC key, LED lights on, then long press the DC key, turn off the LED lights.

  Note: the display is lit but not functional to open the state, 3 seconds after the screen screen breath, the product into the shutdown state.

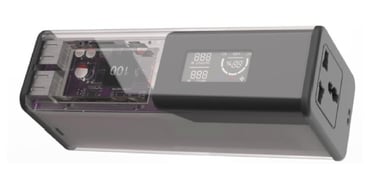

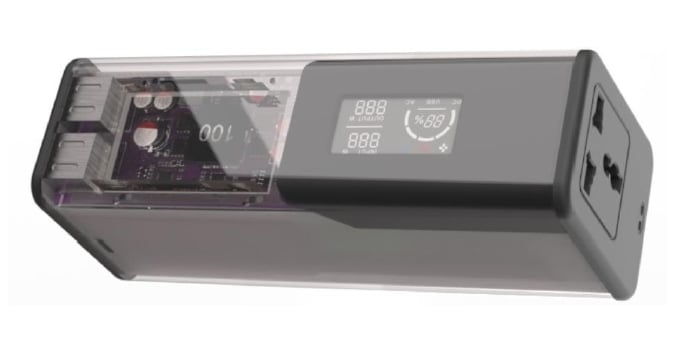

150X MINI Portable Power Station | Model：PNE-150WX

Product description

This product is a super-small energy storage power supply, suitable for daily travel electricity, outdoor travel work and other applications. The product features an AC AC220/110VAC rated 130W (peak 200W pure sinusoidal output) , four independent USB fast charge outputs, USB QC3.0/18W 2 + Type-C PD36W 1 + bidirectional Type-C PD140W. With LED lighting, LCD multi-function display, battery capacity: 99.9 wh, can meet the needs of electricity.

Product features

• Turn on USB C 1 : USB C1 has insert detection function, if insert PD device, it will start automatically, UNPLUG automatically closed.

• Turn on DC USB A, C 2 : Short trigger-DC USB key (DC USB character flashing)-continue to trigger DC USB key (DC USB character display)-DC USB turn on.

• Turn off DC USB : Short trigger-DC USB key (DC USB character flicker)-continue to trigger DC USB key (DC USB character does not show)-DC USB close.

• Turn on AC : Short trigger-AC Key (AC character flicker)-continue to trigger trigger AC key (AC character display)-AC on.

• Turn off AC : Short trigger-AC Key (AC character flicker)-continue to trigger trigger AC key (AC character does not show)-AC off.

  Note: If the button is triggered once, the corresponding icon flashes, and there is no re-trigger within three seconds, the corresponding icon continues to maintain the original state. 3 seconds without its function to open, display breath screen, the product into the shutdown state.

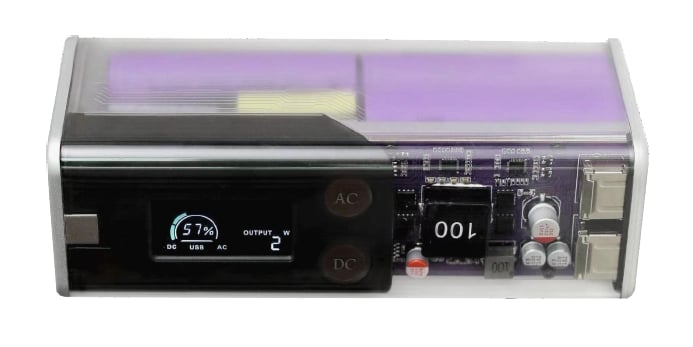

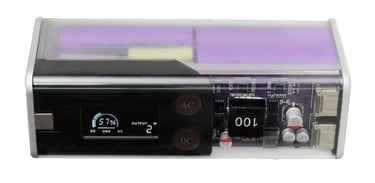

100W Mobile power | Model：PNE-100P

Product description

This product is a portable mobile power supply, suitable for home emergency backup power, outdoor travel work and other applications. The product has AC 220VAC/100W (Pure Sine Wave) , DC USB Qc3.0/18W 2, Type-C PD18W 1, two-way Type-C PD100W, DC 12V/5A) a variety of different voltage outputs; system standard Type-C charging line.

Product features

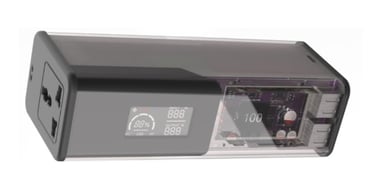

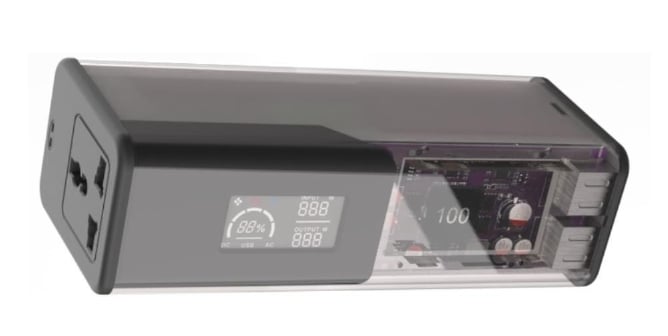

100X MINI Portable Power Station | Model：PNE-100X

Product description

This product is a super-small energy storage power supply, suitable for daily travel electricity, outdoor travel work and other applications. The product features an AC AC220/110VAC rated 100W (peak 200W pure sinusoidal output) , four independent USB fast charge outputs, USB QC3.0/18W 2 + Type-C PD36W 1 + bidirectional Type-C PD140W. With LED lighting, LCD multifunction display, battery capacity: 98.5 WH, can meet the needs of electricity.

• USB On : USB plug-in detection function, plug-in device, will automatically start the USB output; short press the DC button can also turn on the USB output function, display screen USB, DC icon lit up.

• USB off : Short Press DC button can turn off USB output, USB, DC icon off. If the USB port is still loaded, it will automatically restart the USB, you need to unplug the load and then turn off the USB.

• AC On/off : Long Press AC button, AC Open, AC icon light up. Press the AC key again, the AC switch off the output, the AC icon goes out.

• LED lights, on/off : Long press the DC key, LED lights on, then long press the DC key, turn off the LED lights.

  Note: the display is lit but not functional to open the state, 3 seconds after the screen screen breath, the product into the shutdown state.

Product features

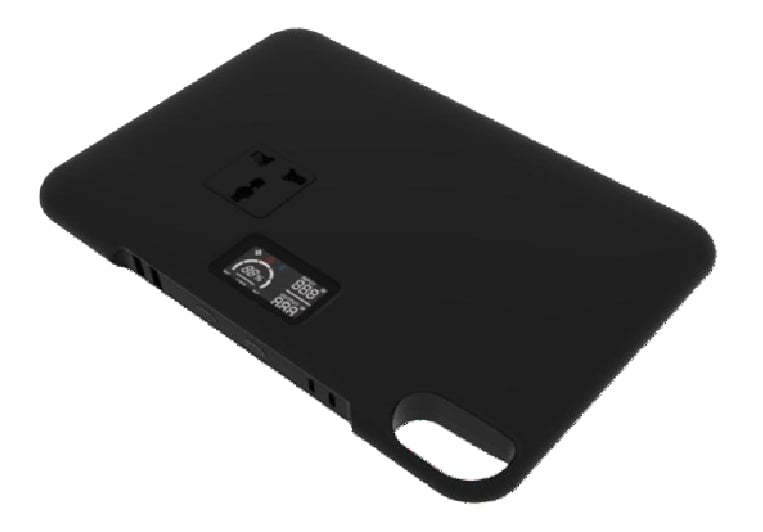

200W MINI Portable Power Station | PNE-200W

Product description

This product is an ultra-thin small energy storage power supply, suitable for daily travel electricity, outdoor travel work and other applications. The product features an AC AC220/110VAC rated 200W (peak 350W pure sinusoidal output) , four independent USB fast charge outputs, USB QC3.0/18W 2 + Type-C PD36W 1 + bidirectional Type-C PD140W. With LED lighting, LCD multi-function display, battery capacity: 175WH, to meet the needs of electricity.

• USB On : USB C1 has insert detection function, insert PD device, will automatically boot, short press USB button to open other USB output function, display USB, DC icon light up.

• USB off : Short Press DC button can turn off USB output, USB, DC icon off. USB C 1 unplug device can automatically turn off the output.

• AC On/off : Long Press AC button, AC Open, AC icon light up. Press the AC key again, the AC switch off the output, the AC icon goes out.

• LED lights, on/off : Short press the LED button, the LED light switch on, then short press can cycle control LED, long bright, Flash, SOS, turn off LED.

  Note: the display is lit but not functional to open the state, 3 seconds after the screen screen breath, the product into the shutdown state.
